Victorian Tiled Hallway Repaired after Pipe Installation in St Neots

Earlier this year I was asked to quote for repairing and restoring a Victorian Tile Hallway in St Neots. The floor was in good physical condition for its age however a section of tiling had been removed to facilitate the installation of a new pipe. The contractor was not very sympathetic to the old floor and after removing the tiles and installing the pipe they had simply back filled with concrete ruining the overall look of the floor.

Victorian Tiled Hallway Before Repair Restoration in St Neots

The rest of the Victorian Tiled Hallway had not been properly cleaned and sealed in some time and any protective sealer had long since worn off in the busier parts of the hallway. Without a sealer in place dirt had penetrated the pores of the tile leaving them looking dull and impossible to keep clean.

Victorian Tiled Hallway Before Restoration in St Neots Victorian Tiled Hallway Before Restoration in St Neots

Period features like this floor are very desirable these days and understandably the owner was every enthusiastic to have the floor fully restored back to its best possible condition.
I discussed with him the work we needed to do, which included repairing the concreted sections, deep cleaning the floor and then finish with the application of a protective sealer. I was confident I could source similar tiles and would be able to get the floor looking great again. We agreed a price and booked the work in to be carried out.

Victorian Tiled Hallway Before Restoration in St Neots

Repairing a Victorian Tiled Hallway Floor

I started by manually removing all the concrete at the back of the hall with a bolster and hammer. Once cleaned of rubble the hole was filled with a self-levelling compound to even out the area in order to get the surface to the right level ready for tiling.

Victorian Tiled Hallway During Restoration in St Neots

Fortunately, I had managed to source nearly identical tiles to replace the missing ones. There are a few places that keep stock, so it makes it easier to restore this type of floor.
The border was laid first followed by filling in the middle with the correct pattern.

Victorian Tiled Hallway During Restoration in St Neots

Deep Cleaning a Victorian Tiled Hallway Floor

Once grouted the whole floor was stripped and cleaned using Tile Doctor Remove and Go which is a coatings remover that is designed to clean and remove old sealers from tile and stone. The product is diluted with water, sprayed onto the tiles and then allowed to soak in for ten minutes before scrubbing it in. The solution soon turns into a dark slurry as the dirt is released from the pores of the tile and this is then rinsed off with water and extracted with a wet vacuum.

Victorian Tiled Hallway During Restoration in St Neots

The next step was to treat any potential efflorescence problems that may appear later due to the lack of a damp-proof membrane under the floor. This is quite a common issue with old floors where moisture can rise through the tile carrying with it salts from the sub floor. To counter this problem and neutralise the alkaline salts the floor is further cleaned with Tile Doctor Grout Clean-up which is an acidic product. To remove the product another round of rinsing and extracted is carried out.

During the cleaning I noticed that some of the tiles had damage to the surface from being concreted over, so I renovated the surface using a 200-grit burnishing pad that hones the tile. Once I was happy the floor was clean, I left it to dry off for two days.

Sealing a Victorian Tiled Hallway Floor

I came back to seal the floor first checking with a damp meter that the moisture levels in the tile were below an acceptable level. All was well so I started the application of the sealer with a base coat of Tile Doctor Colour Grow which is an impregnating sealer that will deepen the colours and add an extra layer of protection.

Once the first dry coat of Colour Grow was dry, I followed up with five coats of Tile Doctor Seal and Go which adds further layers of protection and leaves the tiles with a nice subtle sheen.

Victorian Tiled Hallway After Restoration in St Neots

The job took five days in total, three days to sympathetically repair the floor followed by two days to clean and seal. You can see from the pictures that the repaired area looked very original and overall the floor looked great and the pattern is stunning. For aftercare I recommended they kept the floor clean using Tiles Doctor Neutral Tile Cleaner, this will keep the floor clean and ensure the sealant isn’t eroded prematurely which can happen with stronger floor cleaning products.

Victorian Tiled Hallway After Restoration in St Neots Victorian Tiled Hallway After Restoration in St Neots

The customer over the moon with the results and left the following glowing testimonial for me on the Tile Doctor feedback system.

”Tom was professional, meticulous, polite and hard working. We would have no qualms about recommending his service to others – especially with mosaic Victorian flooring like ours. Good value and plenty of expert advice and guidance thrown in for free. Thanks Tom. By Alden W, St Neots”

Victorian Tiled Hallway After During Restoration in St Neots



Professional Restoration of a Victorian Tiled Hallway in Cambridgeshire

Victorian Tiled Hallway Floor Repaired and Restored in Girton

The owner of this Victorian tiled hallway floor at a house in the village of Girton was unhappy with its condition and asked if we could call round and quote for having it deep cleaned and resealed. Girton is just north of Cambridge and only about six miles from our base so it wasn’t long before I was able to call in and survey the floor.

Victorian Tiled Hallway Before Cleaning Girton

The floor was comprised of a combination of Red, Black and Cream tiles laid in a diamond pattern. The tiles were in good physical condition and I understand from the owner that it had been last cleaned and sealed about two years prior. Unfortunately, the sealer had now faded and had allowed dirt to become trapped in the pores of the tile giving it a grubby appearance that was difficult to clean effectively. The owner had two large dogs which I suspect contributed to the premature degradation of the sealer.

Victorian Tiled Hallway Before Cleaning Girton Victorian Tiled Hallway Before Cleaning Girton

I surveyed the floor, created a quote which was accepted and then agreed a date to return and renovate the floor.

Repairing a Victorian Tiled Hallway Floor

On my return I started by taping up the skirting boards and other woodwork with protective tape. Once that was done, I gave the tiles a soak in a medium dilution of Tile Doctor Remove and Go which was allowed to dwell for ten minutes before being scrubbed in using a black scrubbing pad fitted to a rotary floor buffer. Remove and Go is a coatings remover which cleans the tiles and removes any remaining sealer.

The soil generated was extracted off the floor using a wet vacuum and the tiles inspected. The tiles had responded well to the cleaning process and after spot treating a few areas with a repeat of the previous process it was ready for the next stage which was to give the floor an acid wash.

I had noticed there was a slight build-up of efflorescence along one of the walls which isn’t unusual on these old floors where no damp proof membrane has been installed under the floor. It’s caused by moisture rising through the tile and depositing white salt staining on the surface as it evaporates. To resolve this, we neutralise the salts by giving the floor a quick rinse in a dilution of Grout Clean-up.

The Grout Clean-Up rinsed off the floor with water and extracted with the wet vacuum which was employed to get the floor as dry as possible before leaving for the evening.

Sealing Victorian Hallway Tiles

The floor was left to dry off fully overnight and I returned the next day, unfortunately after checking the moisture levels I found it needed more drying time, so I agreed to come back the next day.

The moisture levels were fine on day three, so I applied multiple coats of Tile Doctor Seal and Go. Seal and Go is a water-based product so you don’t get left with a smell as it dries. As well as protecting the tiles the sealer also adds a nice subtle sheen that works well on Victorian Tiles and has put new life into the tiled hallway.

Victorian Tiled Hallway After Cleaning Girton Victorian Tiled Hallway After Cleaning Girton

Seal and Go is a breathable sealer so it will allow moisture to rise up through the tiles however had the efflorescence problem had been worse I would have used a different sealer. On this occasion however the problem appeared to be historical rather than recent.

My client was very happy with the transformation and left the following feedback.

“We are delighted with our Victorian tiled hall floor after treatment by Tom from Tile Doctor. A very professional service. Good communication throughout, and dedication to ensuring our full satisfaction; not a ways obvious when dealing with old tiles with different levels of porosity! Thank You!”

Victorian Tiled Hallway After Cleaning Girton



Repair Restoration of a Victorian Tiled Hallway in Cambridgeshire

Restoring a Victorian Terrazzo Tiled Hallway, Newmarket

The owner of an older property in Newmarket got in contact with us about restoring his Victorian Terrazzo Tiled Hallway. We like to do a site survey to ascertain the condition of the floor and give the client a fixed price for the works, so we organised a time to pop over and look at the floor.

Adhesive Covered Victorian Terrazzo Hallway Before Cleaning Newmarket Adhesive Covered Victorian Terrazzo Hallway Before Cleaning Newmarket

The floor had taken a battering over the years and was completely unrecognisable after being completely covered up with carpet that had been secured in place with a lot of adhesive. Removing the glue and restoring an old floor like this is a difficult task but something we are familiar with and we were confident it could be restored to a reasonable standard. We discussed with the client the process and agreed a price to carry out the restoration.

Cleaning and restoring a Victorian Terrazzo Tiled Hallway Floor

The first day consisted of adding protection to the wooden skirting and then carefully scraping off as much excess adhesive as possible. To remove the rest of the glue a thick coat of Tile Doctor Nano Tech HBU remover was applied. I had tried applying this product on the floor first, but it struggled to make any impact given the huge amount of adhesive that was present. Incidentally HBU stands for Heavy Build-Up which pretty much described the problem with the floor. I left the HBU to dwell for about fifteen minutes, scrubbed it in and then rinsed off the soil with water and extracted with a wet vacuum.

To finish the job, I then repeated the process with a coat of Tile Doctor Remove and Go which was scrubbed it in to the floor to release the last bits of adhesive. Again, the floor was rinsed with water and the soil extracted with a wet vacuum. The floor was then inspected to ensure all the adhesive had been removed and stubborn areas were spot treated using a mixture of techniques until I was happy.

Removing the adhesive was hard work and took up the whole of the first day but was well worth the effort as the Terrazzo was now visible and the end goal was in sight. So, returning the next day we proceeded to build on the restoration by honing and polishing the Terrazzo with 100 through to 3000-grit diamond encrusted burnishing pads. They are applied in sequence i.e. 100, 200, 400, 800, 1500 and finally 3000 grit, using water to lubricate and then more rinsing and extracting between each pad.

With the glue was removed and the Terrazzo renovated a large crack was clearly visible across part of the hallway floor, whilst it’s not possible to repair this without taking up the floor I was able to improve its’ appearance by applying a matching filler to the cracks whilst the floor dried.

Sealing a Victorian Terrazzo Tiled Hallway Floor

The final stage was the application of an impregnating sealer. We selected to use Tile Doctor Colour Grow which is a colour enhancing product that soaks into the pores of the stone protecting it from within. It had been some time since the Terrazzo had been sealed so it took more coats then usual to properly seal the floor.

Adhesive Covered Victorian Terrazzo Hallway After Cleaning Newmarket Adhesive Covered Victorian Terrazzo Hallway After Cleaning Newmarket

As you can see the floor looked a lot better once completed, the client was very happy with the final result and left the following feedback:-

”We knew that restoring our Victorian Terrazzo floor was going to be a very difficult job, so we were heartened when Tom was so positive about doing a good job and his quotation was very reasonable. He tackled the work very professionally, always turned up on time, explained exactly what he was doing and minimised our inconvenience. We are delighted with the finished job (at the quoted price!) and would have no hesitation in recommending Tom to anyone who needs a similar service.” Des B, Newmarket

Adhesive Covered Victorian Terrazzo Hallway After Cleaning Newmarket



Professional Restoration of a Victorian Terrazzo Tiled Hallway in Cambridgeshire

Victorian Tiled Hallway Floor Repaired and Restored in Great Paxton

I was called out to a house in the Village of Great Paxton to quote for deep cleaning a sealing a Victorian tiled hallway floor, there was also a triangular cemented section at the bottom of the stairs that the owner wanted retiling to match.

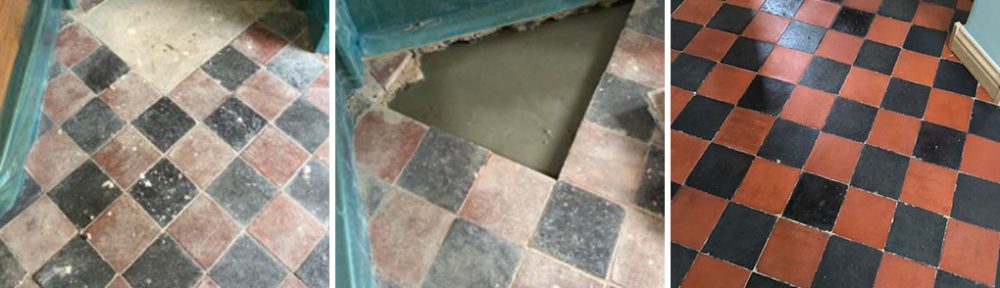

Victorian Tiled Hallway Before Restoration Great Paxton Victorian Tiled Hallway Before Cleaning and Repair Great Paxton

Fortunately, the owner had discovered some spare tiles in the under-stair cupboard that would do the job; were not sure why this triangular section had been cemented in at some point in the past, but I was happy that the spare tiles would be enough to cover. My quote was accepted, and it wasn’t long before I was able to return to carry out the renovation.

Repairing a Victorian Tiled Hallway Floor

I started by taping up the skirting boars and other woodwork with protective tape. Once that was done I removed the triangular section of cement at the foot of the stairs. I noticed that the sub floor consisted of rubble and sand so once removed I was able to lay a section of a damp prof membrane and then back filled with self-levelling compound.

Victorian Tiled Hallway During Cleaning and Repair Great Paxton

Once the levelling compound had dried I laid the tiles that the owner had found under the stairs continuing the black and red diamond pattern. I used a quick setting adhesive which enabled me to grout the tiles in before leaving for the day and leave it to set overnight.

Deep Cleaning a Victorian Tiled Hallway Floor

Day two was begun by inspecting the previous day’s work to make sure all was well with the tiling and then continuing the restoration of the floor. In general, the tiles were dirty and had white paint splashed from decorating and so were now looking dull and faded. To remove the ingrained dirt, I gave the tiles a soak in a medium dilution of Tile Doctor Remove and Go which was scrubbed in using a black scrubbing pad fitted to a rotary floor buffer. This process did a good job of removing the dirt and softened the paint splashes which I was then able to carefully scrape off.

After rinsing the floor with water and extracting the soil with a wet vacuum I could see the tiles were much cleaner but needed more work to get the replacement section to blend better with the existing. To resolve this, I honed the surface of the tiles with a 100-grit and then 200-grit pad rinsing with water and extracting after each pad.

Sealing Victorian Hallway Tiles

The floor was left to dry off fully overnight and I returned the next day to apply a sealer that would add colour and protect the tiles going forward. Multiple coats of Tile Doctor Seal and Go were applied which a water-based product that adds a nice subtle sheen to the floor which works well on Victorian Tiles and put new life into the tiles.

Victorian Tiled Hallway After Restoration Great Paxton Victorian Tiled Hallway After Cleaning and Repair Great Paxton

My customer was very happy with the transformation and left the following feedback.

“We are very pleased with the restoration of our Victorian tiles in the hallway. We are also very pleased with the service and quality of the works carried out.”



Repair Restoration of a Victorian Tiled Hallway in Cambridgeshire

Renovating an Original Edwardian Tiled Hallway to Peak Condition in Chippenham

Edwardian-style tiled floors are very much of a likeness with Victorian-style tiled floors, both typically being made of encaustic cement and styled in painted in geometric patterns. The main difference, of course, is that Edwardian tiles are a main feature of Edwardian-era houses (1901-1910), while Victorian tiles are found in slightly older properties.

As with many Victorian tiled floors, we’ve found that Edwardian tiled floors have commonly been hidden away for many years under carpet or some other form of covering. These hallway Edwardian tiles, at a property in Chippenham, had been covered by carpet for 30 years. Upon removing the carpet, we could see why – the hallway was covered in paint splashes, decades’ worth of dirt and, of course, adhesive stains from the underlay.

Edwardian Tiled Hallway Covered in Carpet and Before Restoration in Chippenham Edwardian Tiled Hallway Covered in Carpet and Before Restoration in Chippenham

My task was to restore the hallway floor back to its peak condition, when it was first installed over a century ago.

Edwardian Tiled Hallway UnCovered Before Restoration in Chippenham Edwardian Tiled Hallway UnCovered Before Restoration in Chippenham

Cleaning an Original Edwardian Tiled Hallway Floor

The first step of the restoration was to ensure the walls surrounding the hallway were protected. I did this by applying a protective film around the edges of the room. Next, I removed all the old carpet grippers and adhesive deposits manually using a handheld scraper.

Edwardian Tiled Hallway Prepared for Restoration in Chippenham

Tile Doctor Remove and Go was then applied to the floor to strip away any old sealant, which certainly by now was no longer effectual. This product also helped to break down the paint stains on the surface of the floor, though I also used a handheld scraper, as well as a rotary machine fitted with a black scrubbing pad, to speed up the process of removing both the sealant and the paint.

Edwardian Tiled Hallway During Restoration in Chippenham

To complete the cleaning process, I applied Tile Doctor Acid Gel, which is a blend of phosphoric and hydrochloric acids in a gel form, formulated to remove grout haze (grout smears) and treat efflorescence which is the formation of white salts on the surface of the tile.

Sealing an Original Edwardian Tiled Hallway Floor

I left the floor to dry completely overnight after installing air movers to assist with the process. These older properties do not typically have damp-proof membrane installed, which makes damp issues a real possibility. Upon returning to the property the following day, I ran some damp tests, and thankfully the tiles proved dry and ready to be resealed.

To do this, I used one coat of Tile Doctor Ultra-Seal, which is a penetrating sealer designed for maximum stain protection. I then also added four coats of Tile Doctor Seal and Go to provide the customer with the low-sheen, highly quality finish he desired.

He was so impressed with the outcome that he left the following glowing review on the Tile Doctor feedback system:

“Tile Doctor did an excellent job, starting from a very dirty and paint covered surface. The hallway floor now looks fantastic, just like it was a century ago. I’m pleased to recommend Cambridge Tile Doctor.”

Edwardian Tiled Hallway After Sealing in Chippenham




Professional Restoration of a Carpet Covered Original Edwardian Tiled Hallway in Cambridgeshire

Victorian Tiled Hallway Floor Cleaned and Sealed in Harston

These photographs are from a lovely old period property in the village of Harston near Cambridge which had an original Victorian Tiled floor installed throughout the hallway and stairwell. Considering its age the tiles were in a very good condition but they were looking dull and overdue for a deep clean and re-seal.

Victorian Tiled Floor Harston Hallway View Before Cleaning 1 Victorian Tiled Floor Harston Before Cleaning 2

Cleaning the Victorian Tiled Floor

Working in sections the first step was to protect the beautiful skirting boards with clear plastic fixed with decorator’s masking tape. This was followed by applying a dilution of Tile Doctor Pro-Clean and letting it soak into the tile for about 20 minutes before being agitated using a rotary machine fitted with a black scrubbing pad.

Victorian Tiled Floor Harston Skirting Protection 3 Victorian Tiled Floor Scrubbing Harston 4

This did a good job of cleaning the floor however there were some stubborn stains that needed further attention so more Pro-Clean was applied and worked in with a stiff hand brush as a steamer was used to help lift the dirt out of the pores in the tile. Once we were happy with the floor the soiled cleaning fluid was removed from the floor using a spinner tool which applies hot water under pressure effectively rinsing the floor whilst removing the water at the same time with suction.

Victorian Tiled Floor Harston Steam Cleaning 5 Victorian Tiled Floor Spinning and Steaming Harston 6

Sealing the Victorian Tiled Floor

The floor was left to dry assisted with air blowers before moving on to sealing with Tile Doctor Seal and Go which is a recommended sealer for Victorian floor tiles that provides on-going stain protection as well as adding a nice subtle shine to the floor.

Victorian Tiled Floor Harston After Cleaning and Sealing 7 Victorian Tiled Floor Harston Completed 8

The customer was really pleased with the results and even asked us back to do the slate tiles in the kitchen something I will no doubt write about in a later post.



Victorian Floor Cleaned and Sealed in Harston, Cambridgeshire
